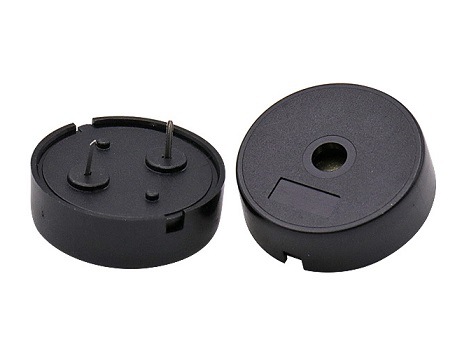

Externally driven piezo buzzer,Top sound
Resonance Frequency : 4.0±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 9 Vp-p (3Vp-p~12Vp-p Customizable)
Current Consumption: 7mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 1500±30% pF
Operating Temp: -40~+85°C
Weight: 2.7g
Housing Material: PBT

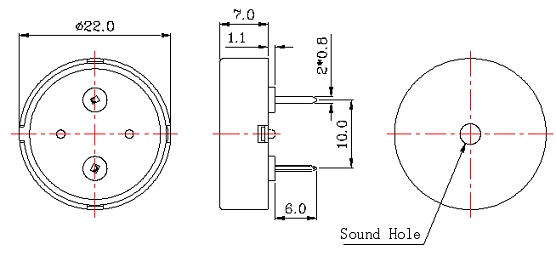

Size:
Order Code |
Operating Voltage |
Resonant Frequency |
Max.Rated Current |
Min.S.P.L.(@10cm) |
Rated Voltage |
KLS3-PT-22*08-A |
1...30Vp-p |
4.0±0.5KHz |
2mA |
75dB |
3Vp-p |
KLS3-PT-22*08-B |
1...30Vp-p |
4.0±0.5KHz |
7mA |
80dB |
9Vp-p |
|
