SMD magnetic buzzer,Externally driven type,Top sound KLS3-SMT-13*10B-5V All Products in SMD magnetic buzzers

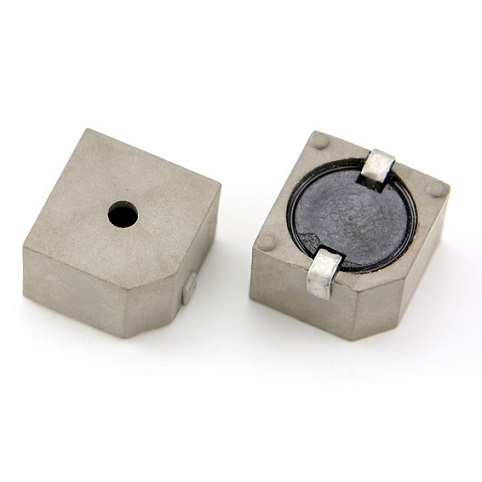

SMD magnetic buzzer,Externally driven type,Top sound


  Product Images
SMD magnetic buzzer,Externally driven type,Top sound


  Product Information

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency:                     2.4KHz
Rated Voltage:                        5Vo-p
Operating Voltage:                  4~8Vo-p
Rated Current:                        40mA Max.at Rated Voltage
Sound Pressure Level:                85dB Min.at 10 cm at Rated Voltage
Coil Resistance:                        47±5Ω
Operating Temp:                     -40~+105°C
Weight:                                  2.5g

Housing Material:                             PPS

Size:

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
