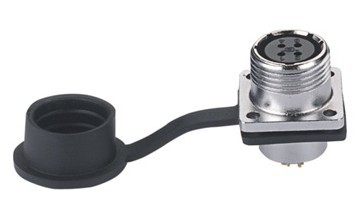

M12 Circular Connector ( Water proof Ip≥55 ) Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive. Order Information: (1) (2)(3) (1) M12: M12 Shell Size (2) 2: 2 pins (2,3,4,5,6,7pins) (3) F1- Plug Socket F2-Docking Plug Pin F3- Plug Pin M1- Receptacle Pin M2- Receptacle Socket M3- Flange Receptacle Pin M4- Flange Receptacle Socket

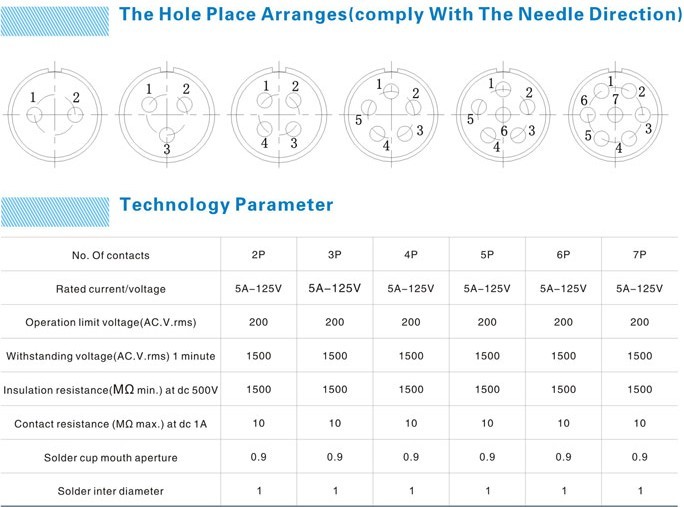

TYPE TYPE Pins Ordering Water-proof
　

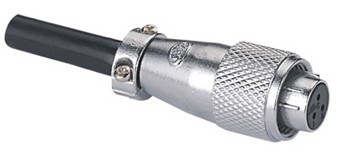

Plug Socket 2 M12-2F1 IP55
3 M12 -3F1 IP55
4 M12 -4F1 IP55
Plug Socket 5 M12 -5F1 IP55
Plug Socket 6 M12 -6F1 IP55
7 M12 -7F1 IP55

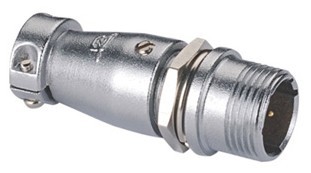

Docking Plug Pin 2 M12-2F2 IP55
3 M12-3F2 IP55
4 M12-4F2 IP55
Docking Plug Pin 5 M12-5F2 IP55
Docking Plug Pin 6 M12-6F2 IP55
7 M12-7F2 IP55

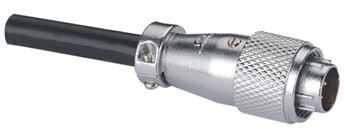

Plug Pin 2 M12-2F3 IP55
3 M12-3F3 IP55
4 M12-4F3 IP55
Plug Pin 5 M12-5F3 IP55
Plug Pin 6 M12-6F3 IP55
7 M12-7F3 IP55

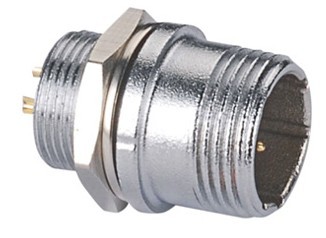

Receptacle Pin 2 M12-2M1 IP55
3 M12-3M1 IP55
4 M12-4M1 IP55
Receptacle Pin 5 M12-5M1 IP55
Receptacle Pin 6 M12-6M1 IP55
7 M12-7M1 IP55

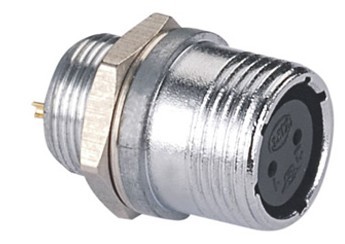

Receptacle Socket 2 M12-2M2 IP55
3 M12-3M2 IP55
4 M12-4M2 IP55
Receptacle Socket 5 M12-5M2 IP55
Receptacle Socket 6 M12-6M2 IP55
7 M12-7M2 IP55
Flange Receptacle Pin 2 M12-2M3 IP55
3 M12-3M3 IP55
4 M12-4M3 IP55
Flange Receptacle Pin 5 M12-5M3 IP55
Flange Receptacle t Pin 6 M12-6M3 IP55
7 M12-7M3 IP55
Flange Receptacle t Socket 2 M12-2M4 IP55
3 M12-3M4 IP55
4 M12-4M4 IP55
Flange Receptacle t Socket 5 M12-5M4 IP55
Flange Receptacle t Socket 6 M12-6M4 IP55
7
M12-7M4 IP55
