You are here: Home > Products > Lighting Connectors > Terminal blocks for building wire
Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out KLS2-L02 All Products in Terminal blocks for building wire

Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out

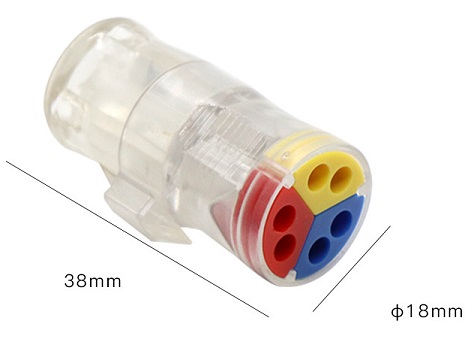

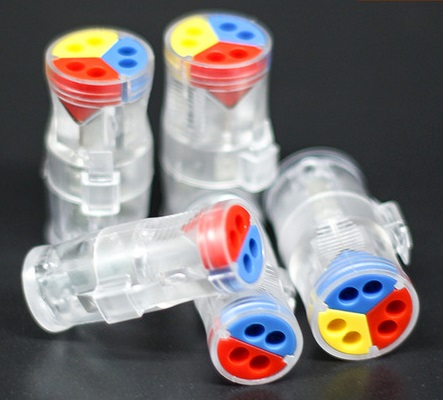

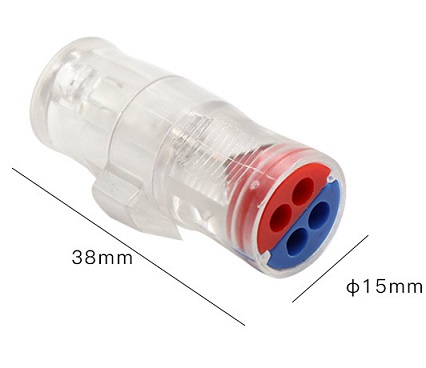

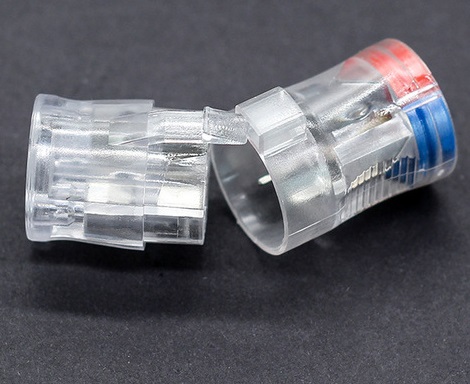

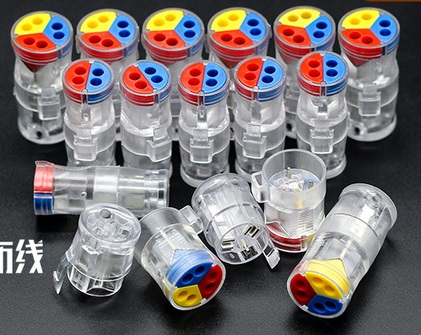

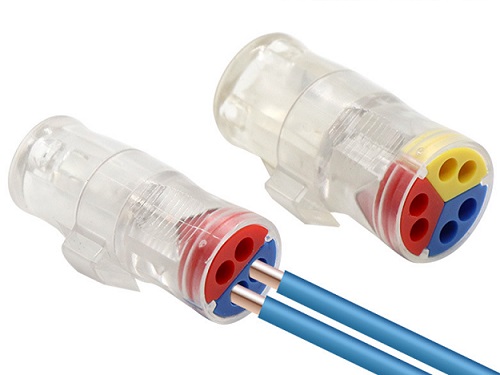

  Product Images
Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out

Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out


  Product Information

Wire Splice Connectors
Applicable wires  : 28-12AWG
Temperature range : -25~95
Voltage rating : 450V
Current rating : 24A
Contact resistance: ≤0.015Ω
Insulation resistance : ≥1000MΩ

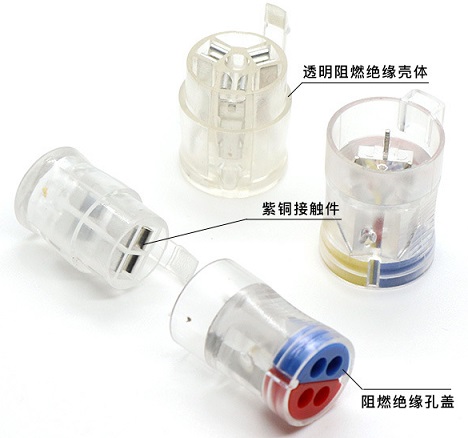

Ｍaterial :
Housing : PA66/PCUL94V-2(0)
Contact : Copper, Tin plated
Spring：SUS 301

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS2-L02-04PWire Splice Connectors,for 2.5mm²,Two in four out,Transparent shell.
KLS2-L02-06PWire Splice Connectors,for 2.5mm²,three in six out,Transparent shell.
