0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm KLS1-PCI06 All Products in Card edge connectors & PCI Express connectors

0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm

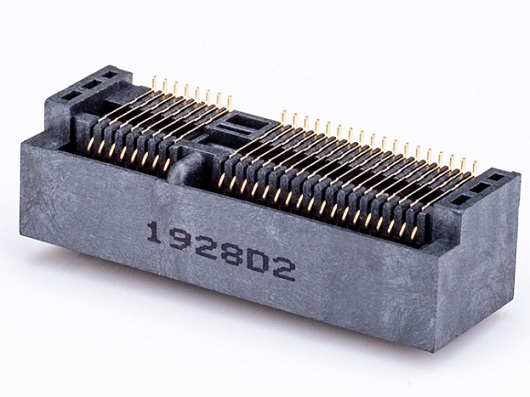

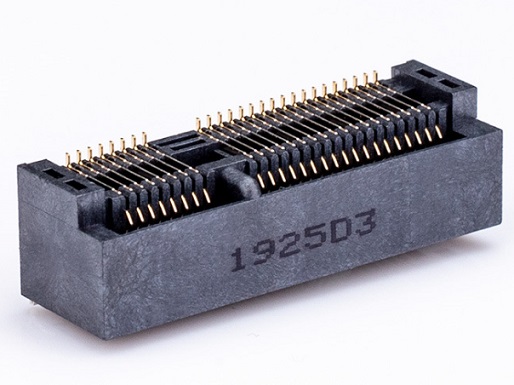

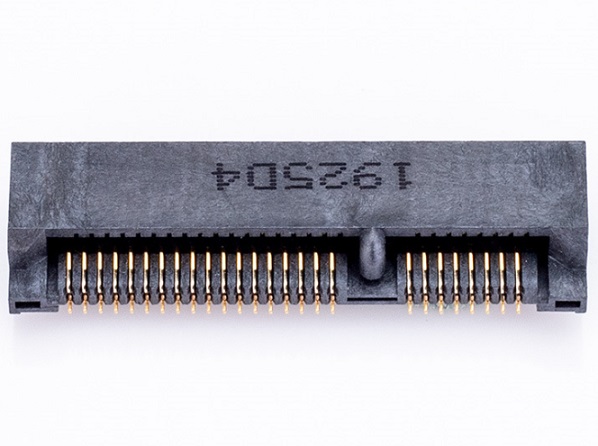

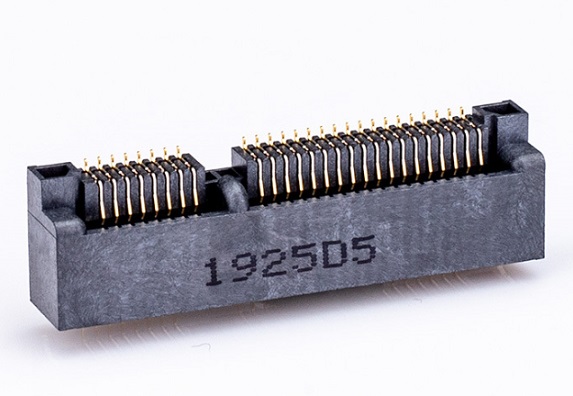

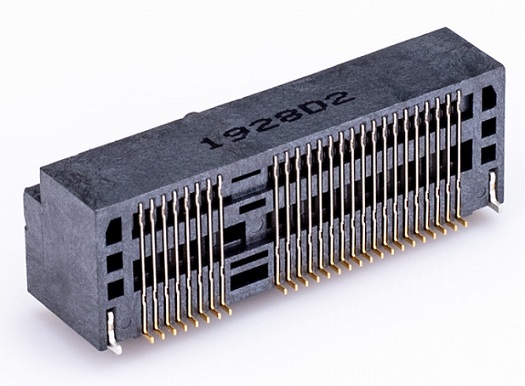

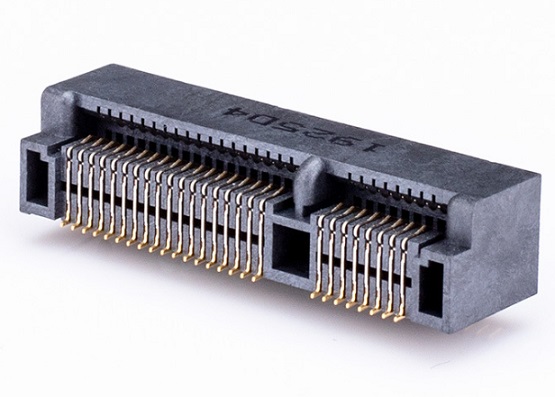

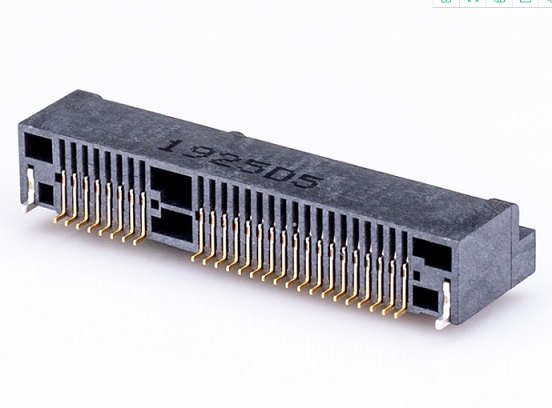

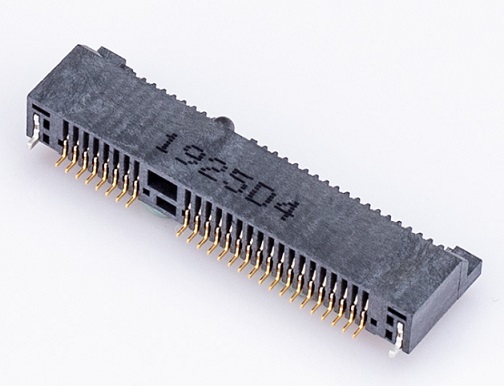

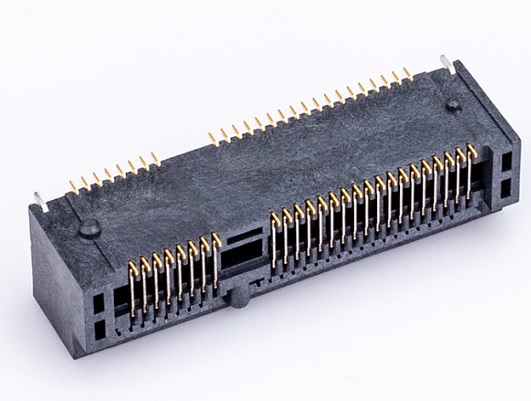

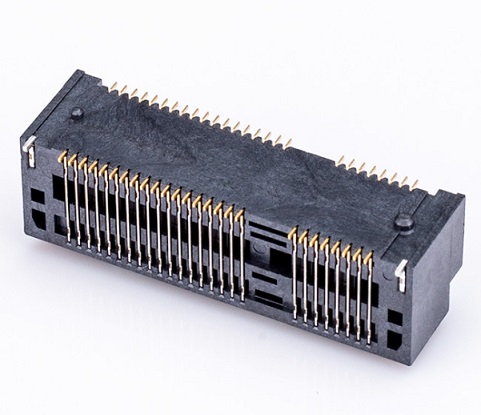

  Product Images
0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm

0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm

0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm

0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm 0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm


  Product Information
0.8mm Pitch Mini PCI Express connector 52P,Height 2.0mm 3.0mm 4.0mm 5.2mm 5.6mm 6.8mm 7.0mm 8.0mm 9.0mm 9.9mm

Order Information
KLS1-PCI06-H4.0-G1U
H Height:H2.0=2.0mm H3.0=3.0mm H4.0=4.00mm  H5.2=5.20mm  H5.6=5.60mm  H6.8=6.80mm H7.0=7.00mm   H8.0=8.00mm  H9.0=9.00mm   H9.9=9.90mm
Plating: G1U=Gold 1u"   G3U=Gold 3u"  G30U=Gold 30u"

Material
Housing:Thermoplastic,High temp,UL94V-0,Black.
Contacts:Copper Alloy.
Pegs:Copper Alloy.

Finish:
Contacts:Selected Gold Plating on the contact area,1u" Min.Gold Plating on the soldertails.50u" Min.Nickel Under Plating over all.
Pegs:120u" Min.Matte-Tin over 50u" Min,Nickel.

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-PCI06-H2.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 2.0mm,Gold Plating 1U.
KLS1-PCI06-H3.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 3.0mm,Gold Plating 1U.
KLS1-PCI06-H4.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 4.0mm,Gold Plating 1U.
KLS1-PCI06-H5.6-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 5.6mm,Gold Plating 1U.
KLS1-PCI06-H6.8-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 6.8mm,Gold Plating 1U.
KLS1-PCI06-H7.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 7.0mm,Gold Plating 1U.
KLS1-PCI06-H8.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 8.0mm,Gold Plating 1U.
KLS1-PCI06-H9.0-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 9.0mm,Gold Plating 1U.
KLS1-PCI06-H9.9-G00.8mm Pitch Mini PCI-E Connectors 52P,Height 9.9mm,Gold Plating 1U.
