M18 Circular photoelectric sensors
> Detection type: Diffuse reflection, retro reflection, through beam, background suppression
> Sensing distance: 10CM-10M
> Light source: Infrared LED(880nm), Red LED(680nm)

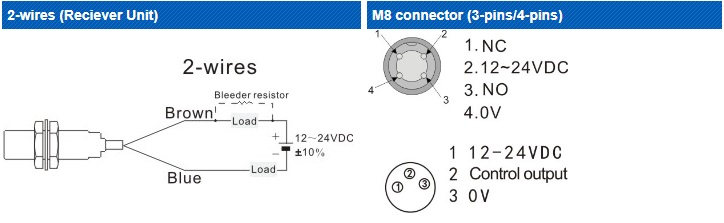

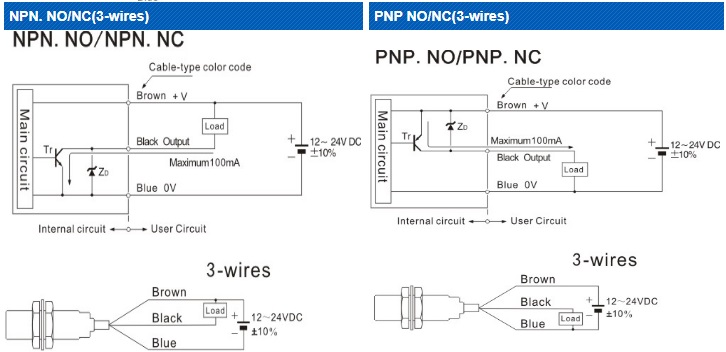

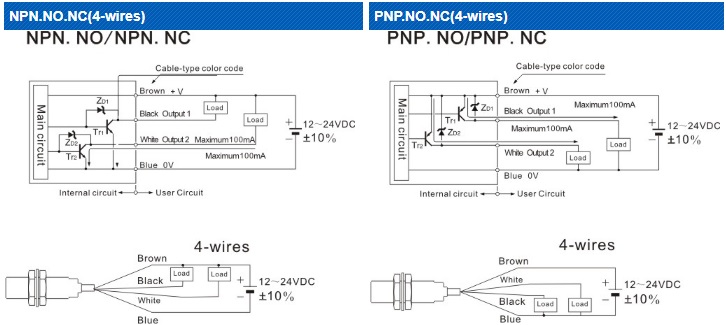

> Output: NPN，PNP, AC2 wires
> Housing material: Nickel copper alloy, PBT
> The design of our products IP66 waterproof
| Category |
Models
|
Detection mode |
Detection distance |
Standard Sensing |
Entry cable |
3D
CAD |
 |
DR18TI-S500N R2M |
NPN.NO |
▆▆ ▆ 5m |
200mm×200mm
white paper |
3+2 (wires) |
 |
| DR18TI-S500NC R2M |
NPN.NO.NC |
4+2 (wires) |
| DR18TI-S500P R2M |
PNP.NO |
3+2 (wires) |
| DR18TI-S500PC R2M |
PNP.NO.NC |
4+2 (wires) |
 |
DR18MI-S200N R2M |
NPN.NO |
▆ ▆ 2m |
200mm×200mm
white paper |
3+2 (wires) |
|
| DR18MI-S200NC R2M |
NPN.NO.NC |
4+2 (wires) |
| DR18MI-S200P R2M |
PNP.NO |
3+2 (wires) |
| DR18MI-S200PC R2M |
PNP.NO.NC |
4+2 (wires) |
 |
DR18RI-S40N R2M |
NPN.NO |
▆▆ 40cm |
100mm×100mm
white paper |
3-wires |
|
| DR18RI-S40NC R2M |
NPN.NO.NC |
4-wires |
| DR18RI-S40P R2M |
PNP.NO |
3-wires |
| DR18RI-S40PC R2M |
PNP.NO.NC |
4-wires |
 |
DR18RI-S10N R2M |
NPN.NO |
▆ 10cm |
10mm×10mm
white paper |
3-wires |
|
| DR18RI-S10NC R2M |
NPN.NO.NC |
4-wires |
| DR18RI-S10P R2M |
PNP.NO |
3-wires |
| DR18RI-S10PC R2M |
PNP.NO.NC |
4-wires |
 |
DR18RI-CU40N R2M |
NPN.NO |
▆▆ 40cm |
100mm×100mm
white paper |
3-wires |
|
| DR18RI-CU40NC R2M |
NPN.NO.NC |
4-wires |
| DR18RI-CU40P R2M |
PNP.NO |
3-wires |
| DR18RI-CU40PC R2M |
PNP.NO.NC |
4-wires |
 |
DR18RI-CU10N R2M |
NPN.NO |
▆ 10cm |
10mm×10mm
white paper |
3-wires |
|
| DR18RI-CU10NC R2M |
NPN.NO.NC |
4-wires |
| DR18RI-CU10P R2M |
PNP.NO |
3-wires |
| DR18RI-CU10PC R2M |
PNP.NO.NC |
4-wires |

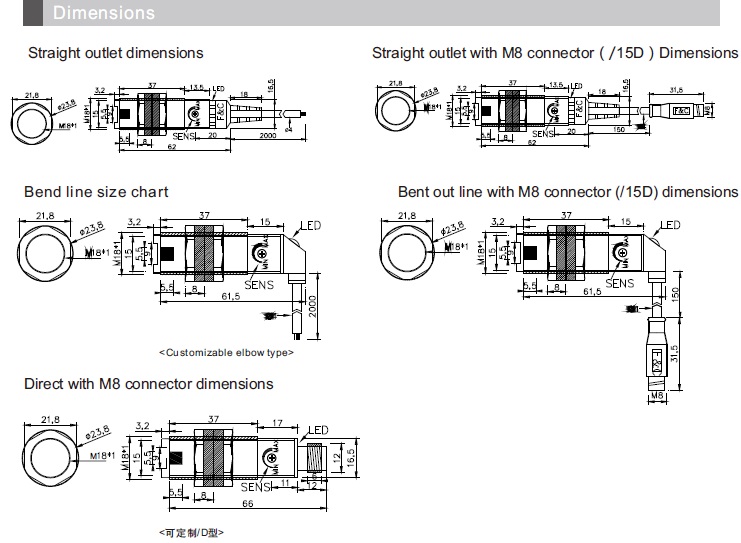

NOTE: "/15D" at the end mean with 150mm cable with M8 connector.
|
