Square photoelectric sensors

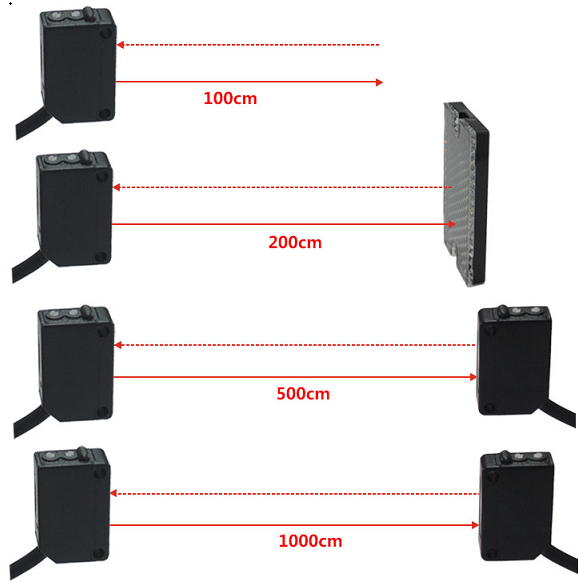

> Detection type: Diffuse reflection, through beam, polarized reflection, retro reflection
> Sensing distance: 10CM-10M
> Light source: Infrared LED(660nm), Light source: Infrared LED(880nm)
> Output: NPN，PNP
> Housing material: PC/PBT
> Connection: M8 connector, cable
| Not Impacted by lights |
| Category |
Model |
Detection mode |
Detection distance |
Detect the smallest objects |
Entry cable |
 |
CR-S1000
CR-S1000/15D |
NPN.NO.NC |
▆▆▆▆▆▆▆ 10m |
φ5 non-transparent |
φ4×2M/3-wires;
φ4×2M/2-wires;
or connector type |
CR-S1000P
CR-S1000P/15D |
PNP.NO.NC |
 |
CR-S500
CR-S500/15D |
NPN.NO.NC |
▆▆▆▆ 5m |
φ3 non-transparent |
φ4×2M/3-wires;
φ4×2M/2-wires;
or connector type |
CR-S500P
CR-S500P/15D |
PNP.NO,NC |
 |
CR-S200
CR-S200/15D |
NPN.NO.NC |
▆▆▆ 2m |
φ5 non-transparent |
φ4×2M, 3-sub wires
or connector type |
CR-S200P
CR-S200P/15D |
PNP.NO.NC |
 |
CR-S100
CR-S100/15D |
NPN.NO.NC |
▆▆ 100cm |
10mm×10mm white paper |
φ4×2M, 3sub wires
or connector type |
CR-S100P
CR-S100P/15D |
PNP.NO.NC |
 |
CR-S40
CR-S40/15D |
NPN.NO.NC |
▆ 40cm |
10mm×10mm white paper |
φ4×2M, 3-sub wires
or connector type |
CR-S40P
CR-S40P/15D |
PNP.NO.NC |
 |

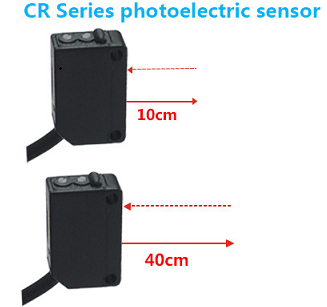

CR-S10
CR-S10/15D |
NPN.NO.NC |
■10cm |
10mm×10mm white paper |
φ4×2M/3-sub wires
or connector type |
CR-S10P
CR-S10P/15D |
PNP.NO.NC |

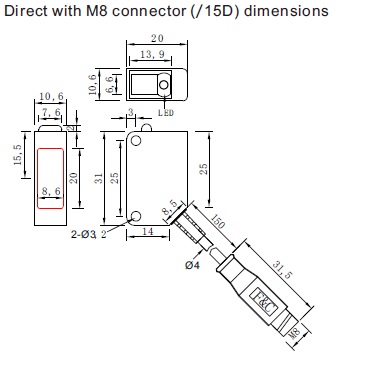

| Note: with "/15D" mean 150mm cable connector type |
 |
