You are here: Home > Products > Connectors > SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors
Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm KLS1-SIM-098 All Products in SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors

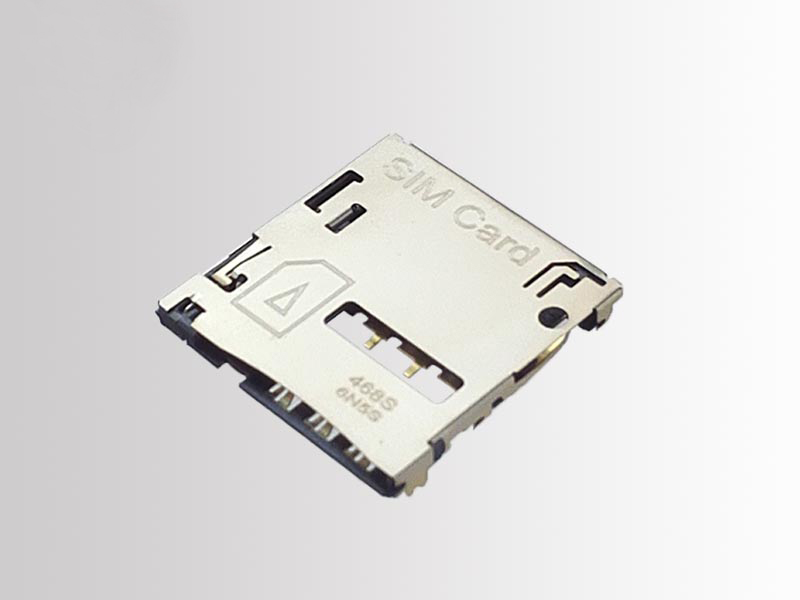

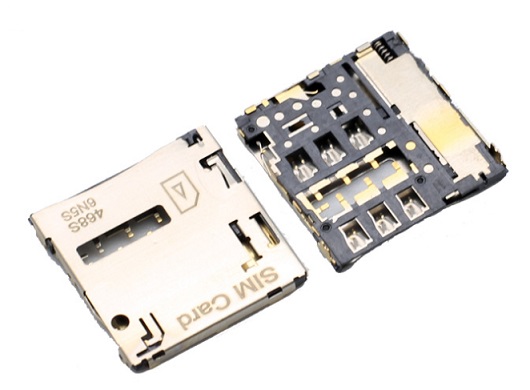

Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm


  Product Images
Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm


  Product Information
Micro SIM Card Connector,6P＋2P With Switch,PUSH PUSH,H1.27mm

NOTE
1.LEAD Co-planarity:Max 0.08mm
2.No rust.contamination.damage nor deformation effecting on function
3.Switch moving area
4.Non-cumulative tolerance
5.Circuit Drawing of switch

Material:
A:Base Insulator:LCP,Black.
B:Cover:Stainless,Not hold down:Nickel;Hold down:Au flash over Nickel.
C:Contact Terminal:Copper Alloy.Au over Nickel
D:CAM Plate:Copper Alloy,Nickel.
E:CAM Slider:LCP,Black.
F:CAM Stick:Stainless
G:Spring:Stainless
H:Stopper:Stainless

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order

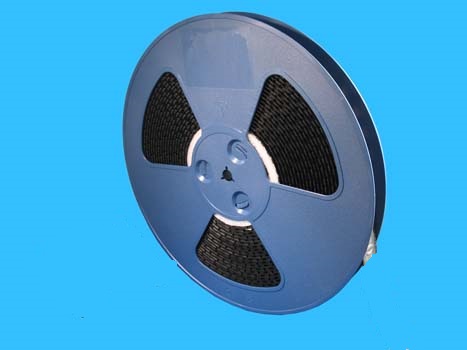

KLS1-SIM-098-H1.27-RMicro SIM Card Connector PUSH-PUSH,6+2 Pins,Height 1.27mm,Roll Pack.
