Micro SIM Card Connector,8Pin H1.5mm,Hinged type KLS1-SIM-089 All Products in SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors

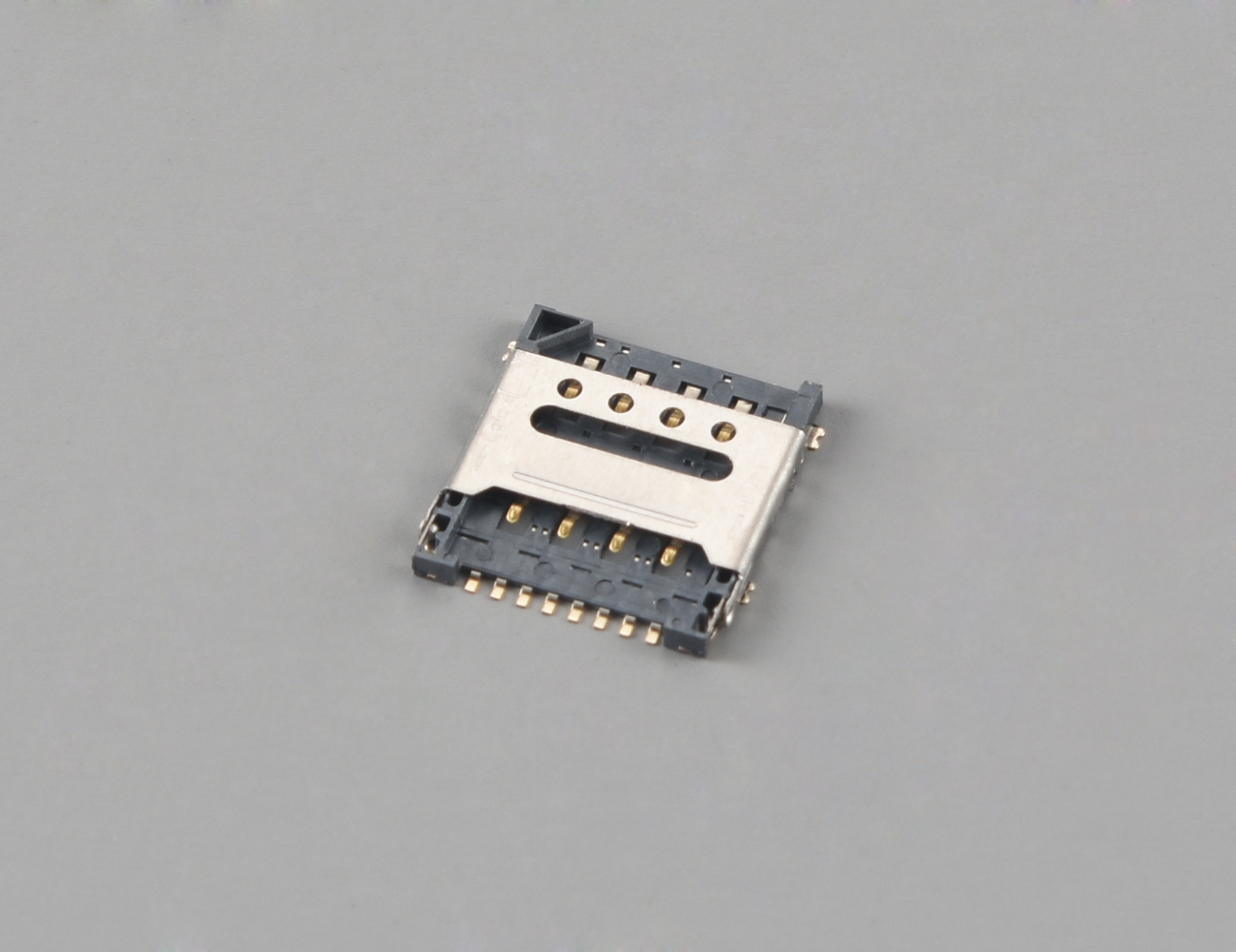

Micro SIM Card Connector,8Pin H1.5mm,Hinged type


  Product Images
Micro SIM Card Connector,8Pin H1.5mm,Hinged type Micro SIM Card Connector,8Pin H1.5mm,Hinged type


  Product Information
Micro SIM Card Connector,8Pin H1.5mm,Hinged type
Material
Housing:Thermoplastic,UL94V-0.
Terminal:Phosphor Bronze,T=0.15,Ni Plated Under,Au Plated On Contact Area,G/F Plated On Soldertail.
Shell:Stainless Steel,T=0.15,Ni Plated Under,G/F Plated On Soldertail.
Electrical
Contact Resistance:60mΩ Max.
Insulation Resistance:1000MΩ Min.
Dielectric Withstanding Voltage:500V AC For 1 Minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order

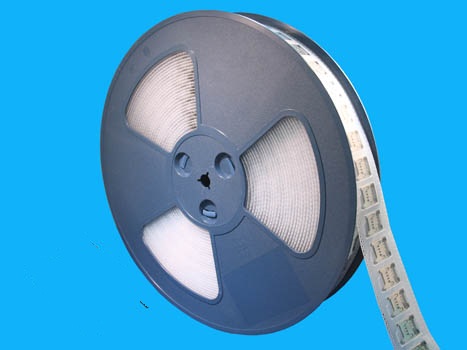

KLS1-SIM-089-8P-H1.5-RMicro SIM Card Connector Hinged type,8 Pins,Height 1.5mm,Roll Pack.
