2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm KLS1-SMA-KFD All Products in SMA connectors

2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm

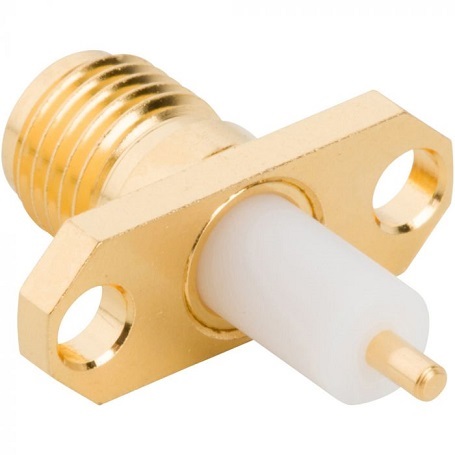

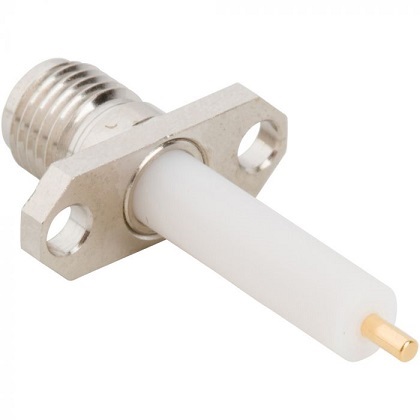

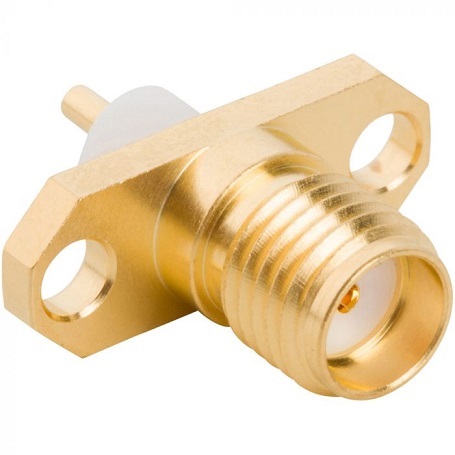

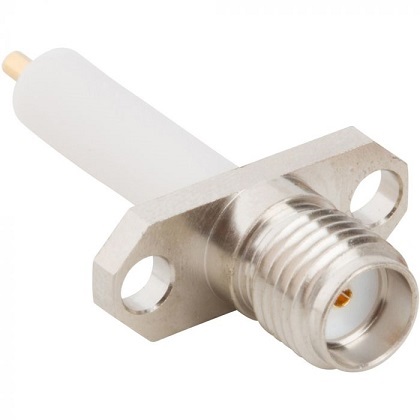

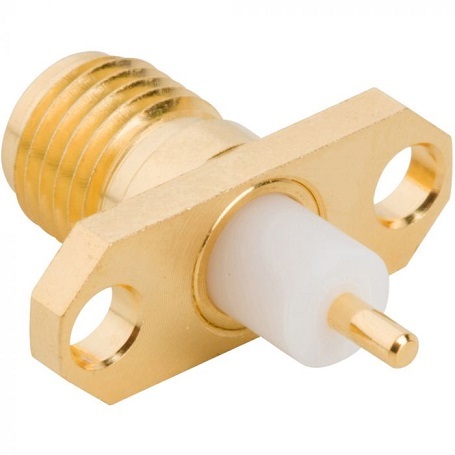

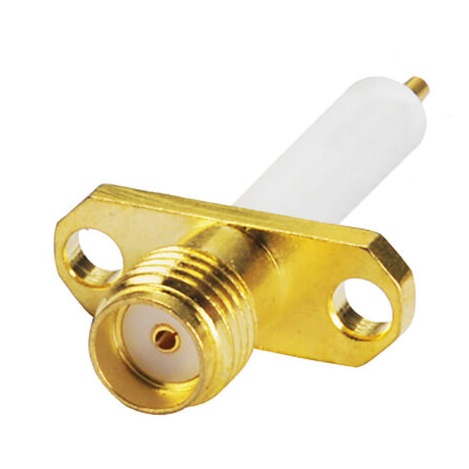

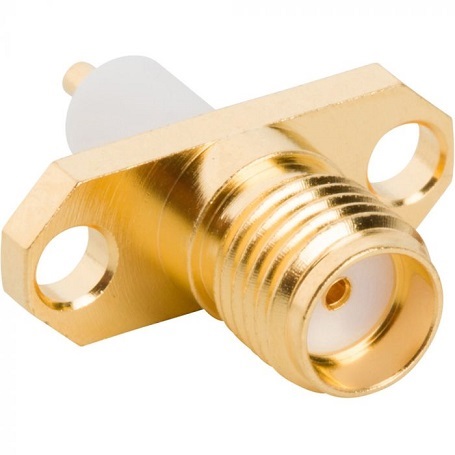

  Product Images
2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm 2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm 2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm 2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm

2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm 2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm 2-Hole Flange Panel Mount SMA Connector Straight (Jack, Female,50Ω) L16.4mm L18.4mm L27.4mm


  Product Information
2-Hole Flange Panel Mount SMA Connector Straight Jack, Female L16.4mm L18.4mm L27.4mm

Material:
Connector body:Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male:Brass,gold Plating
Center contact Female:Beryllium copper,gold Plating
Electrical Specifications:
Impedance:50 Ω
Frequency Range:DC～12.4GHz
Voltage Rating:335 volts rms.
Dielectric Withstanding Voltage:1000V rms
VSWR :≤1.10+0.002f for Straight connector typical;
≤1.20+0.003f for Right angle connector typical
Contact Resistance Center contact: ≤3 mΩ;Body:≤2 mΩ
Insulation Resistance:≥5000 MΩ
Temperature Range: - 65°C to +165°C

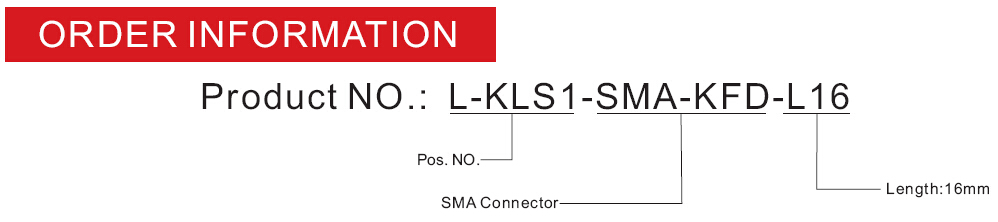

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-SMA-KFD-L162-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L16.4mm,Gold Plating.
KLS1-SMA-KFD-L16-N2-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L16.4mm,Nickel Plating.
KLS1-SMA-KFD-L18.42-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L18.4mm,Gold Plating.
KLS1-SMA-KFD-L18.4-N2-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L18.4mm,Nickel Plating.
KLS1-SMA-KFD-L27.42-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L27.4mm,Gold Plating.
KLS1-SMA-KFD-L27.4-N2-Hole Flange Panel Mount SMA Connector Straight Jack Female 50Ω,L27.4mm,Nickel Plating.
