PCB Mount SMA Connector Straight (Jack,Female,50Ω) KLS1-SMA001M All Products in SMA connectors

PCB Mount SMA Connector Straight (Jack,Female,50Ω)


  Product Images

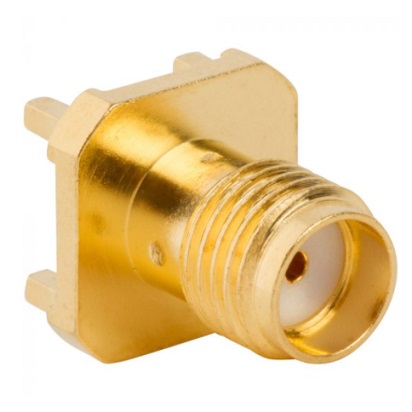

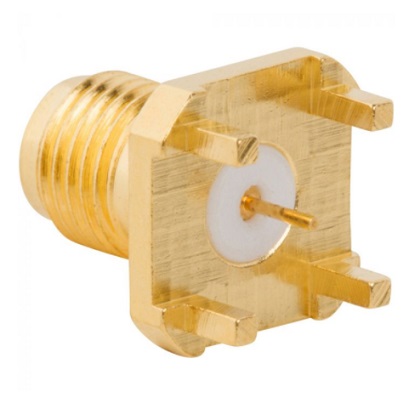

PCB Mount SMA Connector Straight (Jack,Female,50Ω) PCB Mount SMA Connector Straight (Jack,Female,50Ω)


  Product Information
PCB Mount SMA Connector Jack Female Straight
Material:
1.Body:Brass,Gold Plating
2.Insulator:PTFE
3.Center Contact:Beryllium Copper,Gold Plating

Electrical:
Characteristic Impedance:50Ω
Working voltage:335V
Frequency Range:DC-6.0 GHz
Dielectric withstanding voltage:1000V
Contact resistance:Center contact ≦3mΩ / Outer contact:≦2mΩ
Insulation resistance:≧5000MΩ

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-SMA001MPCB Mount SMA Connector Straight,Jack Female,50 Ohm,Gold Plating.
KLS1-SMA001M-NPCB Mount SMA Connector Straight,Jack Female,50 Ohm,Nickel Plating.
