PCB Mount SMA Connector Straight (Jack,Female,50Ω) KLS1-SMA001L All Products in SMA connectors

PCB Mount SMA Connector Straight (Jack,Female,50Ω)


  Product Images

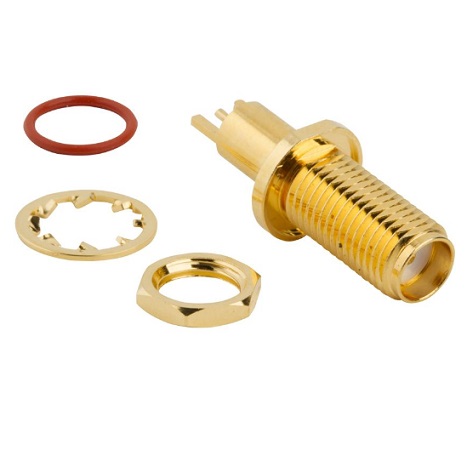

PCB Mount SMA Connector Straight (Jack,Female,50Ω)


  Product Information
PCB Mount SMA Connector Jack Female Straight

Material:
1.Body:Brass,Gold Plating
2.Insulator:PTFE,Natural
3.O-Ping:Silicon Rubber,Red
4.Contact Pin:Phosphor Bronze,Gold Plating
5.Lock Washer:Brass,Gold Plating
6.Hex Nut:Brass,Gold Plating

Electrical:
1.Frequency Range:DC 0-6 GHz
2.VSWR(Return Loss) :1.35 Max
3.Sealing Requirement:IP-68 Must Withstand 30Psi At 1 Meters Of Water
                                  For 30 Minutes Without Any Signs Of Leakage
4.Max.Panel Thickness=9.0mm

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-SMA001LPCB Mount SMA Connector Straight,Jack Female,50 Ohm,Gold Plating.
KLS1-SMA001L-NPCB Mount SMA Connector Straight,Jack Female,50 Ohm,Nickel Plating.
