Wired Modular Jack 616M KLS12-204-4P All Products in Wired telephone jacks

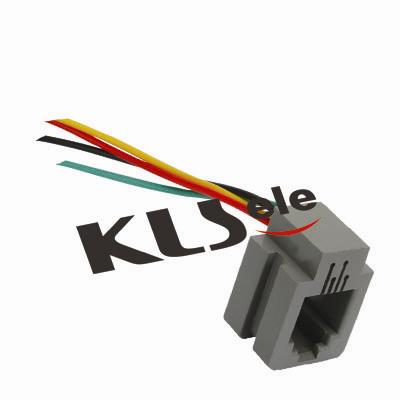

Wired Modular Jack  616M


  Product Images
Wired Modular Jack  616M


  Product Information

Wired Modular Jack

CURRENT RATING:1.5AMPS

VOLTAGE RATING:125VAC

WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min

INSULATION RESISTANCE:100MEGOHMS MIN

CONTACT RESISTANCE:39MILLMHOS MAX

MECHANICAL

CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI

DURABILITY:750MATING CYCLES MINI

MATERIAL

Wire Styles: UL1061 26AWG Strands.

HOUSING:POLYCARBONATE(PC)UL 94V-0 OR UL 94V-2

CONTACT:PHOSPHOR BRONZE,HARD GOLD PLATED OVER NICKEL

SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED

GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

WORKING TEMPERATURE : -40°C ~80°C

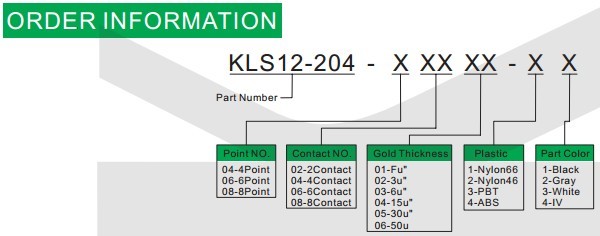

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS12-204-4P2C-01-10CMWired Modular Jack 616M,Unshield,Gray,4P2C (RJ9),Gold 1u,10CM Cable.
KLS12-204-4P2C-01-15CMWired Modular Jack 616M,Unshield,Gray,4P2C (RJ9),Gold 1u,15CM Cable.
KLS12-204-4P4C-01-10CMWired Modular Jack 616M,Unshield,Gray,4P4C (RJ9, RJ10, RJ22),Gold 1u,10CM Cable.
KLS12-204-4P4C-01-15CMWired Modular Jack 616M,Unshield,Gray,4P4C (RJ9, RJ10, RJ22),Gold 1u,15CM Cable.
