Features

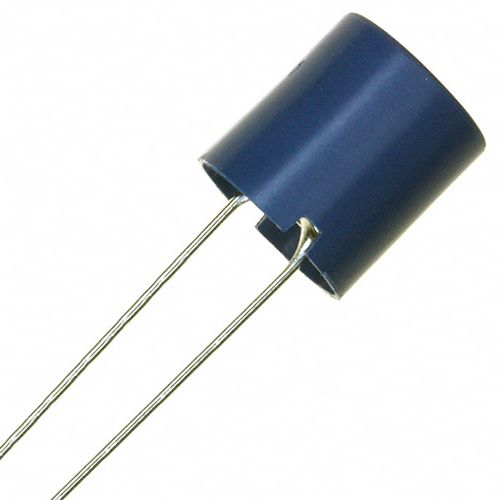

*Encapsulated in a resin housing which adds to
   the stability of the mounted part on a PCB.
*Low DC Resistance and high current.
*Best for the power supply line applications.
*High dimensional accuracy.
*Meets UL 94V-0 flammability standard.
*Tape packaging for auto-insertion.

Applications
*Televisions, VCD,DVD.
*Personal computer.
*Switching Power Supply.
*Telecommunication devices

Test equipment:
*L: HP4284A Precision LCR meter @1kHz 0.25V
*Q: HP4285A Precision LCR meter.
*DCR : Millil-ohm meter
*SRF : HM9461 L-SRF meter or equivalent.

PART NO.	L (uH) @1kHz	Q min	TESTING FREQ.(MHZ)	SRF( MHz ) MIN	DCR (Ω)   MAX	Rated current(A) Max.
						I sat.	I rm
FS0709-1R0M	1.0	10	7.96MHz	70	0.006	6.6	5.0
FS0709-1R5M	1.5	10	7.96MHz	56	0.008	5.4	4.3
FS0709-2R2M	2.2	10	7.96MHz	45	0.011	4.0	3.7
FS0709-3R3M	3.3	10	7.96MHz	36	0.018	3.6	2.9
FS0709-4R7M	4.7	10	7.96MHz	29	0.022	3.1	2.6
FS0709-6R8M	6.8	10	7.96MHz	7.6	0.17	0.96	0.94
FS0709-100K	10	20	2.52MHz	6.2	0.28	0.79	0.73
FS0709-150K	15	20	2.52MHz	5.0	0.33	0.66	0.67
FS0709-220K	22	20	2.52MHz	4.0	0.56	0.53	0.52
FS0709-330K	33	20	2.52MHz	3.2	0.72	0.44	0.46
FS0709-470K	47	20	2.52MHz	7.6	0.17	0.96	0.94
FS0709-680K	68	20	2.52MHz	6.2	0.28	0.79	0.73
FS0709-101K	100	20	796KHz	5.0	0.33	0.66	0.67
FS0709-151K	150	20	796KHz	4.0	0.56	0.53	0.52
FS0709-221K	220	20	796KHz	3.2	0.72	0.44	0.46
FS0709-331K	330	20	796KHz	2.5	1.10	0.36	0.37
FS0709-471K	470	20	796KHz	2.0	1.7	0.30	0.30
FS0709-681K	680	20	796KHz	1.7	2.3	0.25	0.26
FS0709102K	1000	70	252KHz	1.3	4.3	0.20	0.19
FS0709-152K	1500	50	252KHz	1.3	5.0	0.17	0.16
PART NO.	L (uH) @1kHz	Q min	TESTING FREQ.(MHZ)	SRF( MHz ) MIN	DCR (Ω)   MAX	Rated current(A) Max.
						I sat.	I rm
FS0809-2R2M	2.2	10	7.96MHz	60	0.011	5.5	4.0
FS0809-3R3M	3.3	10	7.96MHz	38	0.013	3.8	3.4
FS0809-4R7M	4.7	10	7.96MHz	30	0.017	3.7	3.0
FS0809-6R8M	6.8	10	7.96MHz	24	0.023	2.8	2.6
FS0809-100K	10	20	2.52MHz	19	0.031	2.5	2.2
FS0809-150K	15	20	2.52MHz	15	0.042	2.0	1.9
FS0809-220K	22	20	2.52MHz	12	Part No. Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order   Related Products Radial High Current Power Inductor KLS18-PKE Radial Power Inductor KLS18-PKS Radial UL Tube Power Inductor KLS18-PK Power Chokes Inductors KLS18-PKS4W   Axial UL Tube Power Chokes Inductor KLS18-VC Radial Shielded Power Inductor KLS18-FSB Inductors L-KLS18-CH1216U-103K-02
