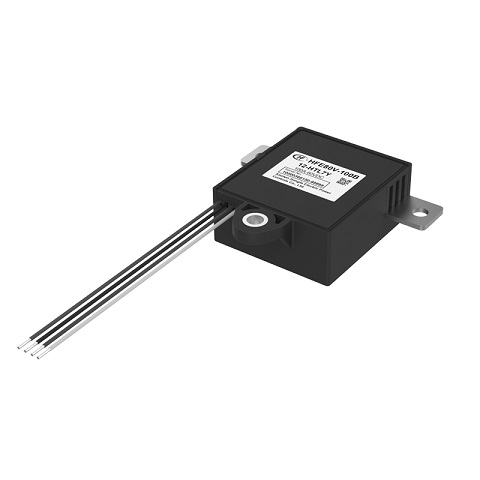

HONGFA High voltage DC relay,Carrying current 100A,Load voltage 60VDC HFE80V-100B |
 All Products in HVDC Relays |
|
 |
Outline Dimensions:50.6 x 23.0 x 57.0mm
Features
● Preferred products for 48V system.
● Low height and small size.
● Carrying current 100A continuously at 75°C.
● Insulation resistance is 1000MΩ(500 VDC), and dielectric
strength between the coil and contacts is 2.5kV, which meets
the requirements of IEC 60664-1.
Detailed parameters
| Contact Arrangement |
1 Form A |
| Coil terminal structure |
Wire |
| Load terminal structure |
With external connector |
| Coil characteristic |
Single coil |
| Load voltage |
60VDC |
| Outline Dimensions |
50.6 x 23.0 x 57.0mm |
|
