Cement Fixed Resistor KLS6-SQP All Products in Cement fixed resistors

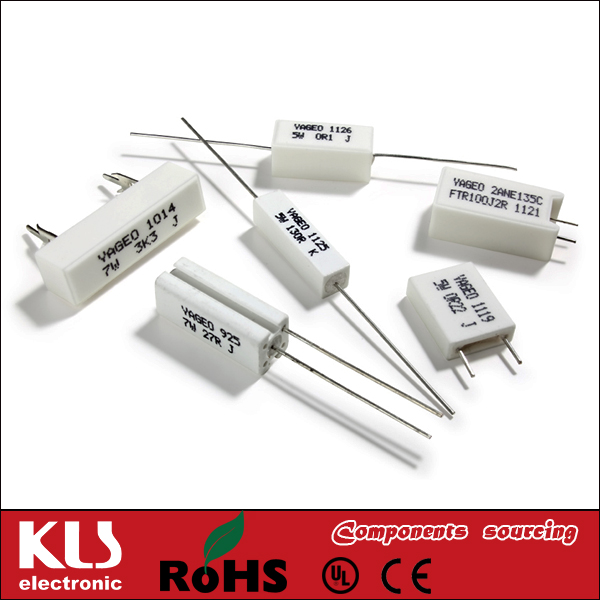

Cement Fixed Resistor


  Product Images
Cement Fixed Resistor


  Product Information

Cement Fixed Resistor

Features
1. Good heat-durability, Low temperature coefficient, low noise,
high load power, high insulating capacity, nonflammability.
2. Operating ambient temperature: -55°C ~ +275°C

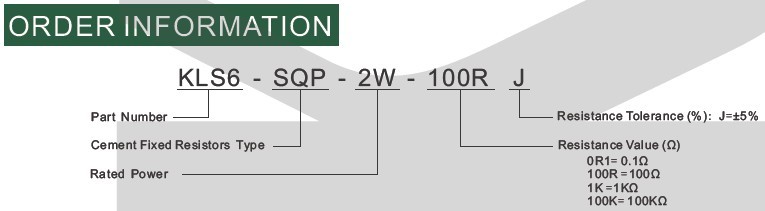

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS6-SQM-10W-100R-JCement Fixed Resistor,SQM Type,Max working voltage 1000V,10W,Resistance 100Ω(0.1Ω~250KΩ),Tolerance:±5%.
KLS6-SQM-2W-100R-JCement Fixed Resistor,SQM Type,Max working voltage 350V,2W,Resistance 100Ω(0.1Ω~40KΩ),Tolerance:±5%.
KLS6-SQM-3W-100R-JCement Fixed Resistor,SQM Type,Max working voltage 500V,3W,Resistance 100Ω(0.1Ω~62KΩ),Tolerance:±5%.
KLS6-SQM-5W-100R-JCement Fixed Resistor,SQM Type,Max working voltage 700V,5W,Resistance 100Ω(0.1Ω~120KΩ),Tolerance:±5%.
KLS6-SQM-7W-100R-JCement Fixed Resistor,SQM Type,Max working voltage 700V,7W,Resistance 100Ω(0.1Ω~250KΩ),Tolerance:±5%.
KLS6-SQP-10W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 1000V,10W,Resistance 100Ω(0.1Ω~250KΩ),Tolerance:±5%.
KLS6-SQP-15W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 1000V,15W,Resistance 100Ω(0.1Ω~1KΩ),Tolerance:±5%.
KLS6-SQP-20W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 1000V,20W,Resistance 100Ω(2Ω~1.2KΩ),Tolerance:±5%.
KLS6-SQP-25W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 1000V,25W,Resistance 100Ω(2Ω~1.5KΩ),Tolerance:±5%.
KLS6-SQP-2W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 350V,2W,Resistance 100Ω(0.1Ω~40KΩ),Tolerance:±5%.
KLS6-SQP-30W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 1000V,30W,Resistance 100Ω(2Ω~1.5KΩ),Tolerance:±5%.
KLS6-SQP-3W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 500V,3W,Resistance 100Ω(0.1Ω~62KΩ),Tolerance:±5%.
KLS6-SQP-5W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 700V,5W,Resistance 100Ω(0.1Ω~120KΩ),Tolerance:±5%.
KLS6-SQP-7W-100R-JCement Fixed Resistor,SQP Type,Max working voltage 700V,7W,Resistance 100Ω(0.1Ω~250KΩ),Tolerance:±5%.
