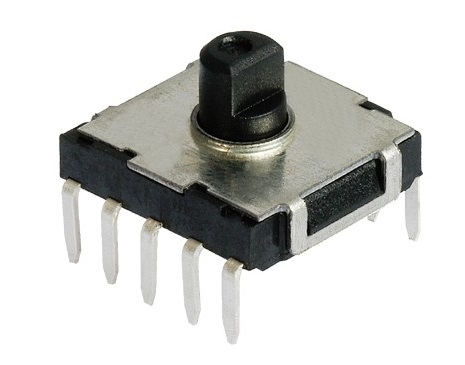

Multi Function Switch
| 1- KLS's Part No. |
|
| KLS7-MT-04-A-8.0 |

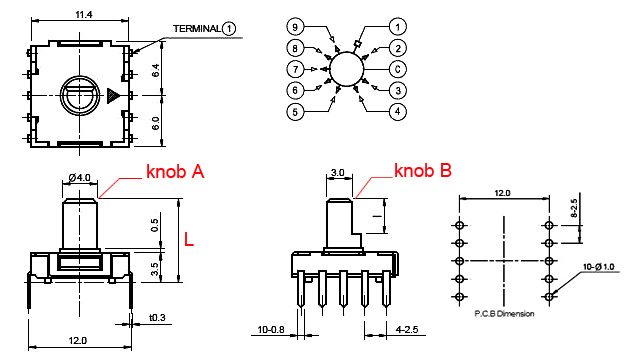

Size 11.4mm x 12.4mm / DIP Rotary Switch / L=8MM / knob A |
| KLS7-MT-04-A-10.0 |
Size 11.4mm x 12.4mm / DIP Rotary Switch / L=10MM / knob A |
| KLS7-MT-04-B-8.0 |
Size 11.4mm x 12.4mm / DIP Rotary Switch / I=8MM / knob B |
| KLS7-MT-04-B-10.0 |
Size 11.4mm x 12.4mm / DIP Rotary Switch / I=10MM / knob B |
|
|
| 2- Specification : |
|
| Rating : |
0.1A / 16V DC |
| Insulation Resistance |
500MΩ min. 100V DC |
| Contact Resistance |
500MΩ max. |
| Withstand Voltage |
250V AC For 1 Min |
| Ambient Temper.Used |
-300C to +850C |
| Life |
50000 Cycles |
| Operating force |
200+-60gf |
| Travel |
|
