Male PCB Terminal block 5.0mm Pitch KLS2-332J-5.00 All Products in Wire protector PCB terminal blocks

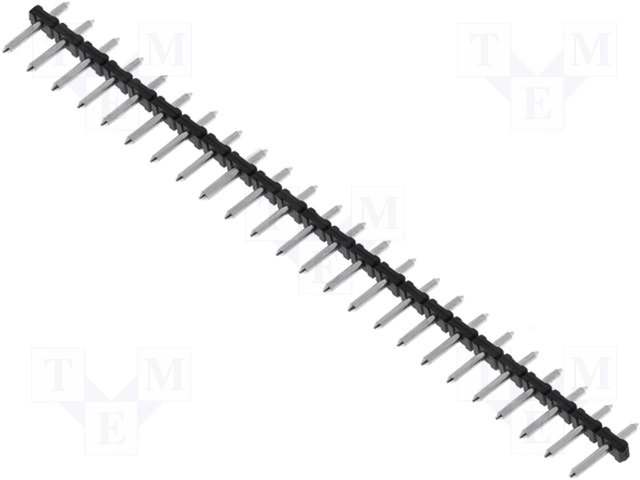

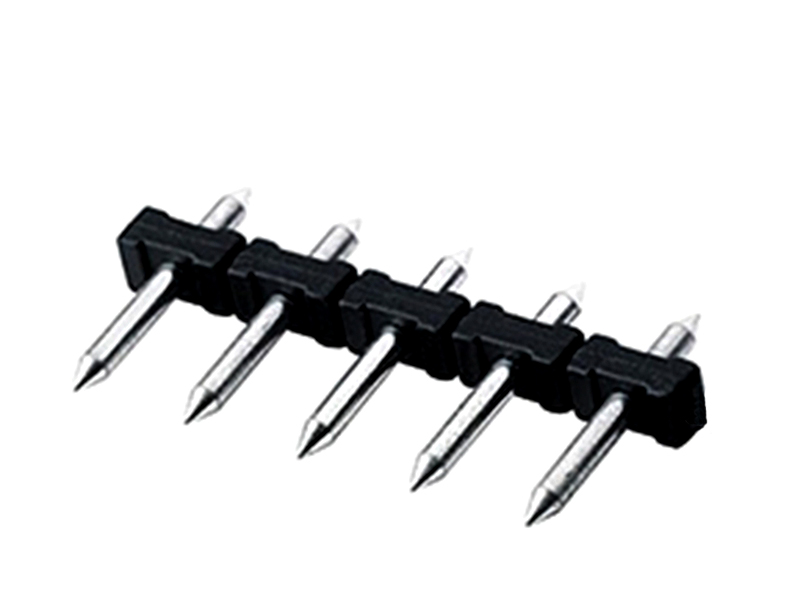

Male PCB Terminal block 5.0mm Pitch


  Product Images
Male PCB Terminal block 5.0mm Pitch Male PCB Terminal block 5.0mm Pitch


  Product Information
Electrical :
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/500V
Withstanding Voltage: AC2000V/1Min

Material
Pin header: Brass, Tin plated
Housing: PBT,UL94V-0

Mechanical
Temp. Range: -30ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS2-332J-5.00-02P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,02Pin,Black.
KLS2-332J-5.00-03P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,03Pin,Black.
KLS2-332J-5.00-04P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,04Pin,Black.
KLS2-332J-5.00-05P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,05Pin,Black.
KLS2-332J-5.00-06P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,06Pin,Black.
KLS2-332J-5.00-07P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,07Pin,Black.
KLS2-332J-5.00-08P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,08Pin,Black.
KLS2-332J-5.00-09P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,09Pin,Black.
KLS2-332J-5.00-10P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,10Pin,Black.
KLS2-332J-5.00-11P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,11Pin,Black.
KLS2-332J-5.00-12P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,12Pin,Black.
KLS2-332J-5.00-13P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,13Pin,Black.
KLS2-332J-5.00-14P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,14Pin,Black.
KLS2-332J-5.00-15P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,15Pin,Black.
KLS2-332J-5.00-16P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,16Pin,Black.
KLS2-332J-5.00-17P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,17Pin,Black.
KLS2-332J-5.00-18P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,18Pin,Black.
KLS2-332J-5.00-19P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,19Pin,Black.
KLS2-332J-5.00-20P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,20Pin,Black.
KLS2-332J-5.00-21P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,21Pin,Black.
KLS2-332J-5.00-22P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,22Pin,Black.
KLS2-332J-5.00-23P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,23Pin,Black.
KLS2-332J-5.00-24P-3PCB Terminal Block,Pin Header Dip 180,Pitch 5.00mm,24Pin,Black.
