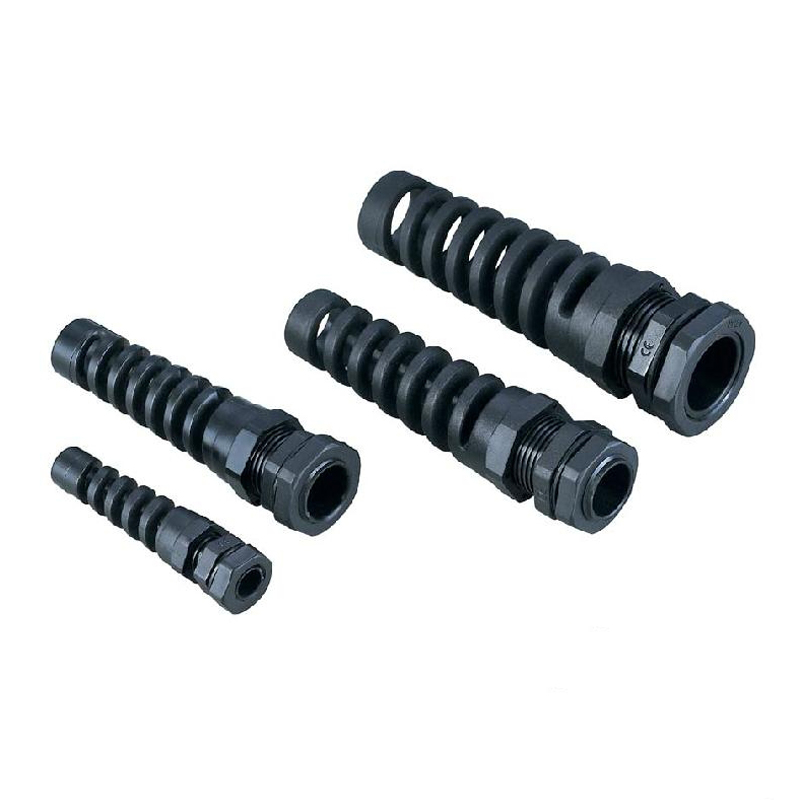

Oder Information KLS8-0609-PG-7-B
Item No. Cable Outer diameter Mounting hole diameter Thread length Joint length Wrench diameter
PG-73~6.5 12.5 12.5~12.8 8 65 16
PG-7S2~5 12.5 12.5~12.8 8 65 16
PG-94~8 15.2 15.2~15.5 8 70 19
PG-9S2~6 15.2 15.2~15.5 8 70 19
PG-115~10 18.6 18.6~18.9 8 78 22
PG-11S3~7 18.6 18.6~18.9 8 78 22
PG-13.5 6~12 20.4 20.4~20.7 9 90 24
PG-13.5S5~9 20.4 20.4~20.7 9 90 24
PG-1610~14 22.5 22.5~22.8 10 100 27
PG-16S7~12 22.5 22.5~22.8 10 100 27
PG-2113~18 28.3 28.3~28.6 10 112 33
PG-21S9~16 28.3 28.3~28.6 10 112 33
M12 x 1.53~6.5 12 12~12.3 8 65 16
M12 x 1.5S2~5 12 12~12.3 8 65 16
M16 x 1.54~8 16 16~16.3 8 70 19
M16 x 1.5S2~6 16 16~16.3 8 70 19
M18 x 1.55~10 18 18~18.3 8 78 22
M18 x 1.5S3~7 18 18~18.3 8 78 22
M20 x 1.56~12 20 20~20.3 9 90 24
M20 x 1.5S5~9 20 20~20.3 9 90 24
M22 x 1.510~14 22 22~22.3 10 100 27
M22 x 1.5S7~12 22 22~22.3 10 100 27
M25 x 1.513~18 25 25~25.3 10 112 33
M25 x 1.5S9~16 25 25~25.3 10 112 33
M27 x 1.513~18 27 27~27.3 10 112 33
M27 x 1.5S9~16 27 27~27.3 10 112 33
Item No. Cable Outer diameter Mounting hole diameter Thread length Joint length Wrench diameter
NPT-1/43~6.5 13.7 13.7~14 8 65 16
NPT-1/4S2~5 13.7 13.7~14 8 65 16
NPT-3/84~8 17 15.2~15.5 8 70 19
NPT-3/8S2~6 17 15.2~15.5 8 70 19
NPT-1/26~12 21.2 18.6~18.9 8 78 22
NPT-1/2S5~9 21.2 18.6~18.9 8 78 22
&
