You are here: Home > Products > Connectors > Male pin header connetors & Mini jumper connectors
OEM Automotive Connectors,3.50mm Pitch Male Pin Header Connector KLS1-207LA All Products in Male pin header connetors & Mini jumper connectors

OEM Automotive Connectors,3.50mm Pitch Male Pin Header Connector

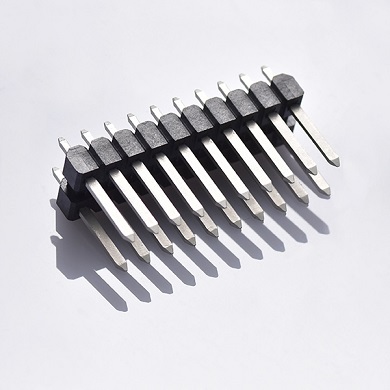

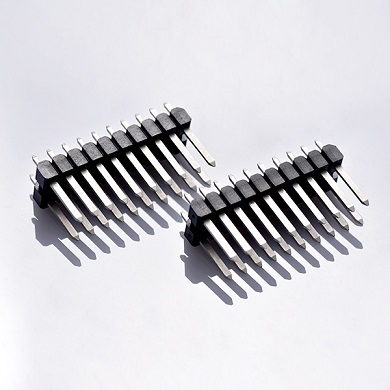

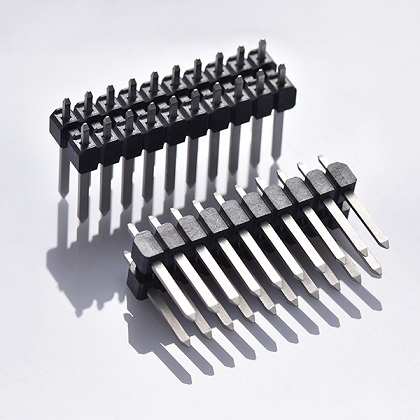

  Product Images
OEM Automotive Connectors,3.50mm Pitch Male Pin Header Connector OEM Automotive Connectors,3.50mm Pitch Male Pin Header Connector OEM Automotive Connectors,3.50mm Pitch Male Pin Header Connector


  Product Information
3.50mm Pitch Male Pin Header Connector

Material:
Housing: LCP+30%G.F  UL94V-0), black.
Contact: Brass, Tin-Plated

Electrical Characteristics:
Current Rating: 7A AC/DC
Voltage Rating: 500V AC/DC
Contact Resistance: S/R: 20mΩ Max
                                  T: 30mΩ Max
Insulator Resistance: S/R: 1000MΩ Min
                                   T: 500MΩ Min
Withstand Voltage: S/R: 600V  AC/DC
                                T: 500V AC/DC
Operating Temperature: S/R: -40°C ~ +105°C
                                       T: -40°C ~ +125°C

Picture Part No. PDF Description Order Qty. Time Order
KLS1-207LA-4.50-2-XX-R-3.15×12.15×3.0-SnMale Pin Header Connector,3.5×6.0mm,4.50mm Plastics Height,Dual Row,04~20 Pins,Right Type,Size,Tin-plating.
KLS1-207LA-4.50-2-XX-S-D1-SnMale Pin Header Connector,3.5×6.0mm,4.50mm Plastics Height,Dual Row,04~20 Pins,Straight Type,D1 Size,Tin-plating.
KLS1-207LA-4.50-2-XX-S-D2-SnMale Pin Header Connector,3.5×6.0mm,4.50mm Plastics Height,Dual Row,04~20 Pins,Straight Type,D2 Size,Tin-plating.
KLS1-207LA-4.50-2-XX-S-D3-SnMale Pin Header Connector,3.5×6.0mm,4.50mm Plastics Height,Dual Row,04~20 Pins,Straight Type,D3 Size,Tin-plating.
KLS1-207LA-4.50-2-XX-T-L1×L2×L3-XXMale Pin Header Connector,3.5×6.0mm,4.50mm Plastics Height,Dual Row,04~40 Pins,SMT Type,Size,Plating.
