3.96mm 640430 IDC Connector KLS1-MT-3.96&KLS1-MA-3.96&KLS1-MR-3.96&KLS1-MB-3.96 All Products in IDC connectors

3.96mm 640430 IDC Connector

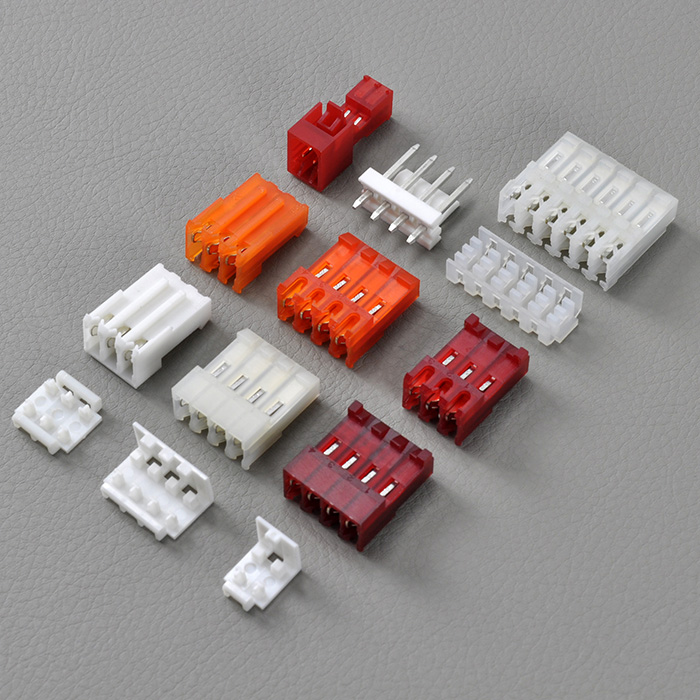

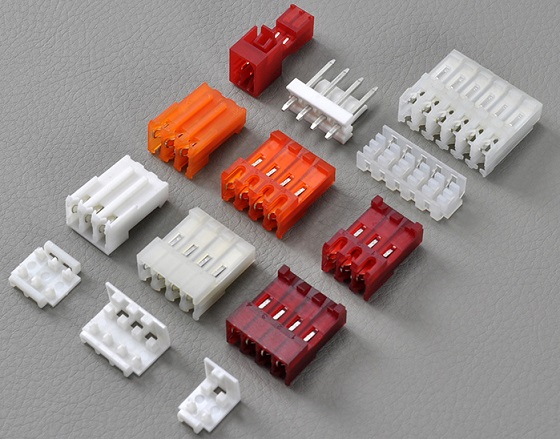

  Product Images
3.96mm 640430 IDC Connector 3.96mm 640430 IDC Connector


  Product Information
3.96mm 640430 IDC Connector

Housing Order Information
KLS1-MT-3.96-XX-R
Housing Type-MA,MB,MC,MT,MR,MU
3.96-3.96mm pitch
XX-Total pin number  (No.of 2~24pins)
Color: O=18AWG  Y=20AWG  R=Red=22AWG  W=White=24AWG
          BL=Blue=26AWG  G=Green=28AWG  BK=Black 18~26AWG

Wafer Order Information
KLS1-MT-3.96-S1-XX-W
Straight Wafer:S1,S2,S3,S4   Right Angle Wafer:R1,R2,R3,R4
XX-Total pin number  (No.of 2~24pins)

Electrical Specification:
Rated Voltage:  250V AC.DC
Rated Current:  7A
Contact Resistance:   10mΩ max
Insulation Resistance:   1000MΩ  min
Withstand voltage:   1500V AC/MIN
Temperature range for usage  : -40ºC~+105ºC
Material:
Housing: PA66  UL94V-2
Contacts:   Phosphor bronze
Plating: Tin 50u" over 100u" nickel



Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-MA-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MA-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MA-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MA-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
KLS1-MB-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MB-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MB-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MB-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
KLS1-MC-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MC-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MC-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MC-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
KLS1-MR-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MR-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MR-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MR-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
KLS1-MT-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MT-3.96-XX-H1-W3.96mm Pitch AMP board to board connector,02~24 Pins,,Housing,White.
KLS1-MT-3.96-XX-H2-W3.96mm Pitch AMP board to board connector,02~24 Pins,,Housing,White.
KLS1-MT-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MT-3.96-XX-R13.96mm Pitch AMP board to board connector,02~24 Pins,Right Angle Pin.
KLS1-MT-3.96-XX-R23.96mm Pitch AMP board to board connector,02~24 Pins,Right Angle Pin.
KLS1-MT-3.96-XX-R33.96mm Pitch AMP board to board connector,02~24 Pins,Right Angle Pin.
KLS1-MT-3.96-XX-R43.96mm Pitch AMP board to board connector,02~24 Pins,Right Angle Pin.
KLS1-MT-3.96-XX-S13.96mm Pitch AMP board to board connector,02~24 Pins,Straight pin.
KLS1-MT-3.96-XX-S23.96mm Pitch AMP board to board connector,02~24 Pins,Straight pin.
KLS1-MT-3.96-XX-S33.96mm Pitch AMP board to board connector,02~24 Pins,Straight pin.
KLS1-MT-3.96-XX-S43.96mm Pitch AMP board to board connector,02~24 Pins,Straight pin.
KLS1-MT-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MT-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
KLS1-MU-3.96-XX-BL3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Blue 26AWG.
KLS1-MU-3.96-XX-R3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Red 22AWG.
KLS1-MU-3.96-XX-W3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,White 24AWG.
KLS1-MU-3.96-XX-Y3.96mm Pitch AMP board to board connector,IDC Housing,02~24 Pins,Yellow 20AWG.
