2.00mm IDC type Wire Connector KLS1-XL6-2.00 All Products in IDC connectors

2.00mm IDC type Wire Connector


  Product Images

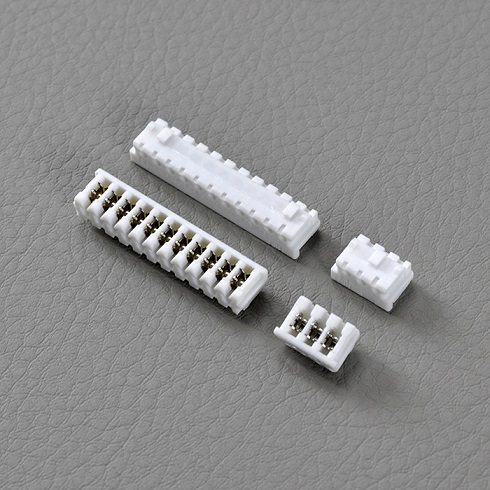

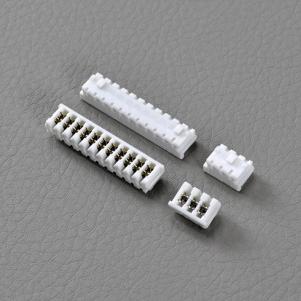

2.00mm IDC type Wire Connector


  Product Information
2.00mm IDC type Wire Connector

Order information:
KLS1-XL6-2.00-02
Pitch:2.00mm
Pin numbur:2~15 pins

Specifications
â—†Material: Nylon UL 94V0 (Lead Free)
â—†Contact : Phosphor Bronze
â—†Finish : Plated Tin or Gold Flash Lead over Nickel
â—†Current rating:2A AC,DC
â—†Voltage rating:125V AC,DC
◆Temperature range:-35℃~+85℃
â—†Insulationresistance:1000MΩ/Min.
â—†Withstanding voltage:1000V AC/minute
â—†Contact resistance:20mΩ/Max.

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-XL6-2.00-XX2.00mm Pitch AMP IDC type Wire Connector,02~15 Pins.
