0.60mm Pitch XSR wire to board connector KLS1-XL1-0.60 All Products in IDC connectors

0.60mm Pitch XSR wire to board connector

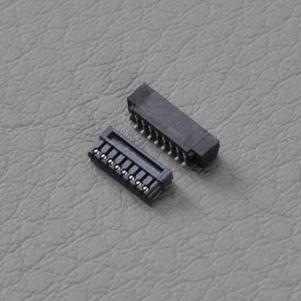

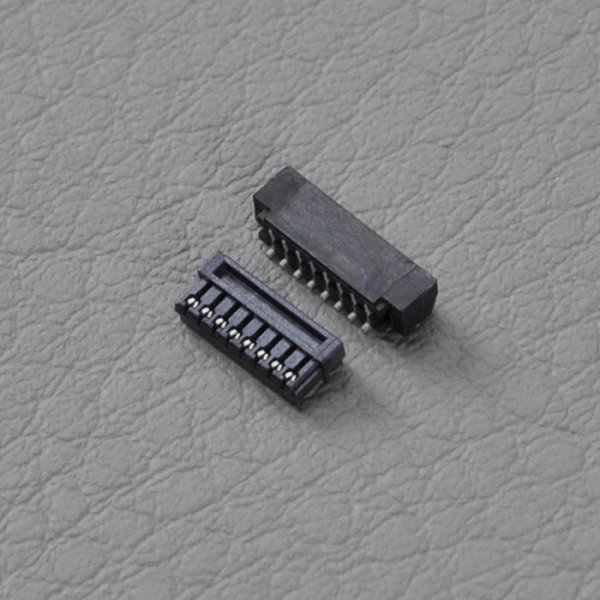

  Product Images
0.60mm Pitch XSR wire to board connector


  Product Information

0.60mm Pitch XSR IDC wire to board connector

Order information:
KLS1-XL1-0.60-XX-H
XX-No.of 02~22pin
H-IDC Hosing   RM-Horizontal SMT Pin


Specifications
â—†Material: LCP UL94V-0,Black
â—†Contact : Phosphor Bronze
â—†Plating: Plated Tin or Gold Flash Lead over Nickel
â—†Current rating:0.2A AC,DC
â—†Voltage rating:30V AC,DC
◆Temperature range:-25℃~+85℃
â—†Insulationresistance:100MΩ/Min.
â—†Withstanding voltage:200V AC/minute
â—†Contact resistance:20mΩ/Max.

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-XL1-0.60-XX-H0.60mm Pitch JST XSR IDC wire to board connector,02~16 Pins,IDC Hosing.
KLS1-XL1-0.60-XX-RM0.60mm Pitch JST XSR IDC wire to board connector,02~16 Pins,Horizontal SMT Pin.
